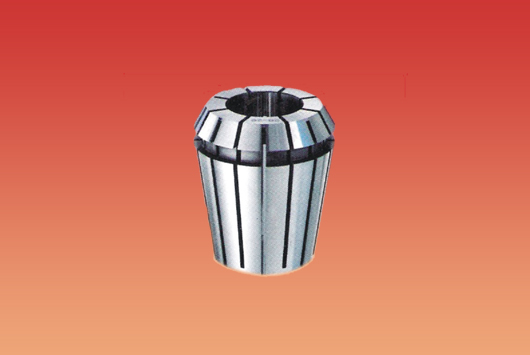

We manufacture and supply superior quality RTO Collet. Our RTO Collets are designed and developed using optimum quality raw materials and are widely acclaimed for their strength and durability.
Features :
- Highly reliable
- Excellent grip
- Sturdy construction
- Durable
Dimensions in mm:
| Designation | Bore Range 0D | No. Of Pieces Per Set | Collet Collapses by | 0D | 0D1 | L | Ref: | ||
| From | To | In steps | |||||||
| RTO 20 | 2.0 | 12.0 | 0.5 | 22 | 0.5 | 19.80 | 17.5 | 34.0 | OZ 407E |
| RTO 25 | 2.0 | 16.0 | 0.5 | 29 | 0.5 | 25.50 | 22.65 | 40.0 | OZ 415E |
| RTO 30 | 2.0 | 20.0 | 0.5 | 37 | 0.5 | 29.80 | 27.40 | 45.0 | OZ 4541E |
| RTO 35 | 2.0 | 25.0 | 0.5 | 47 | 0.5 | 35.05 | 32.90 | 52.0 | OZ 462E |
| RTO 44 | 4.0 | 32.0 | 0.5 | 57 | 0.5 | 43.70 | 41.30 | 60.0 | OZ 467E |
| RTO 52 | 12.0 | 40.0 | 0.5 | 57 | 0.5 | 52.20 | 49.70 | 68.0 | OZ 468E |
Dimensions in inch:
| Designation | Bore Range 0D | No. Of Pieces Per Set | Collet Collapses by | 0D | 0D1 | L | Ref: | ||
| From | To | In steps | |||||||
| RTO 20 | 1/16 | 1/2 | 1/32 | 15 | 1/64 | 0.780 | 0.699 | 1.339 | OZ 407E |
| RTO 25 | 1/16 | 5/8 | 1/32 | 19 | 1/64 | 1.004 | 0.892 | 1.575 | OZ 415E |
| RTO 30 | 1/16 | 25/32 | 1/32 | 24 | 1/64 | 1.173 | 1.079 | 1.772 | OZ 4541E |
| RTO 35 | 1/16 | 1.00 | 1/32 | 31 | 1/64 | 1.380 | 1.295 | 2.047 | OZ 462E |
| RTO 44 | 1/8 | 1 1/4 | 1/32 | 37 | 1/64 | 1.720 | 1.626 | 2.362 | OZ 467E |
| RTO 52 | 1/2 | 1 9/16 | 1/32 | 35 | 1/64 | 2.055 | 1.957 | 2.677 | OZ 468E |

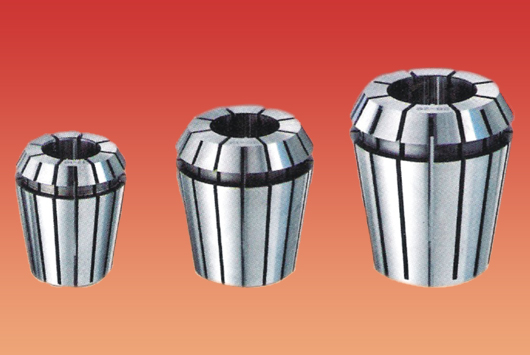

Leveraging on our long experience in the industry, we offer quality Sealed Collets and expanding collets for various industrial usages. Our industrial collets are made with qualitative raw material. These industrial collets are appreciated for their features including wear resistance, high hardness and best functioning.
Specifications :
| Collet Designation | Bore Range D | Clamping Capacity Per Set | D | Guage plane Dia D1 | L | ||||
| From | To | In Steps of | Total Pieces | From | To | ||||
| ERNC11 | 3 | 7 | 0.5 | 13 | 3 | 7 | 11.5 | 11 | 18 |
| ERNC16 | 3 | 10 | 1 | 10 | 3 | 10 | 17 | 16 | 27 |
| ERNC20 | 3 | 13 | 1 | 12 | 3 | 13 | 21 | 20 | 31 |
| ERNC25 | 3 | 16 | 1 | 15 | 3 | 16 | 26 | 25 | 35 |
| ERNC32 | 3 | 20 | 1 | 18 | 3 | 20 | 33 | 32 | 40 |
| ERNC40 | 4 | 26 | 1 | 23 | 4 | 26 | 41 | 40 | 46 |
| ERNC50 | 12 | 34 | 2 | 12 | 12 | 34 | 52 | 50 | 60 |

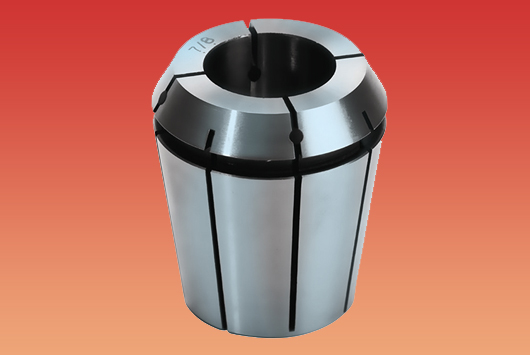

ER Collets are precision engineered by our dexterous and experienced team. They are made from optimum grade raw materials to ensure high reliability to user’s end.
Features :
- Durable
- Highly reliable
- Sturdy construction
- Perfect finish
Dimensions in mm :
| Designation | ØD1 | Ø D | L | Bore Range Ø d | In Steps Of | Collect Collapses By | No Of pcs/set |
| ER 8 | 8.0 | 8.50 | 13.80 | 1.0 to 5.0 | 0.5 | 0.5 | 9 |
| ER 11 | 11.0 | 11.50 | 18.0 | 1.0 to 7.0 | 0.5 | 0.5 | 13 |
| ER 12 | 12.0 | 12.00 | 19.50 | 1.0 to 7.0 | 0.5 | 1.0 | 13 |
| ER 16 | 16.0 | 17.00 | 27.50 | 1.0 to 10.0 | 1.0 | 1.0 | 10 |
| ER 20 | 20.0 | 21.00 | 31.50 | 2.0 to 10.0 | 1.0 | 1.0 | 12 |
| ER 25 | 25.0 | 26.00 | 34.00 | 2.0 to 16.0 | 1.0 | 1.0 | 15 |
| ER 32 | 32.0 | 33.00 | 40.00 | 3.0 to 20.0 | 1.0 | 1.0 | 18 |
| ER 40 | 40.0 | 41.00 | 46.00 | 4.0 to 26.0 | 1.0 | 1.0 | 23 |
| ER 50 | 50.0 | 52.00 | 60.00 | 12.0 to 34.0 | 2.0 | 2.0 | 12 |
Dimensions in inch :
| Designation | ØD1 | Ø D | L | Bore Range Ø d | In Steps Of | Collect Collapses By | No Of pcs/set |
| ER 8 | 8.0 | 0.335 | 0.543 | 1/16 to 3/16 | 1/32 | 1/64 | 9 |
| ER 11 | 11.0 | 0.453 | 0.709 | 1/16 to 1/4 | 1/32 | 1/64 | 7 |
| ER 12 | 12.0 | 0.472 | 0.768 | 1/16 to 1/4 | 1/32 | 1/64 | 7 |
| ER 16 | 16.0 | 0.669 | 1.083 | 1/16 to 13/32 | 1/32 | 1/32 | 12 |
| ER 20 | 20.0 | 0.827 | 1.240 | 1/16 to 1/2 | 1/32 | 1/32 | 15 |
| ER 25 | 25.0 | 1.024 | 1.339 | 1/16 to 5/8 | 1/32 | 1/32 | 19 |
| ER 32 | 32.0 | 1.299 | 1.575 | 3/32 to 3/4 | 1/32 | 1/32 | 22 |
| ER 40 | 40.0 | 1.641 | 1.811 | 1/8 to 1.0 | 1/32 | 1/32 | 29 |
| ER 50 | 50.0 | 2.047 | 2.362 | 1/2 to 13/8 | 3/32 | 5/64 | 21 |

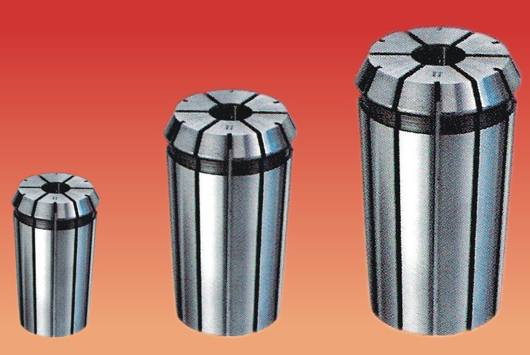

Features :
- Collet bore is exactly tool diameter for accuracy and regidity
- Permit synchronous tapping operations using any standard collet chuck.
- Available sealed for coolant-through applications
Specifications :
| Tapping Collet Designation | Thread Size | Shank Diameter(ØD) | Square Size (C) |
| ER-16-T | M3 | Ø3.10 | 2.50 |
| M4 | Ø4.00 | 3.10 | |
| M5 | Ø5.00 | 4.00 | |
| M6 | Ø6.35 | 5.00 | |
| ER-20-T | M3 | Ø3.10 | 2.50 |
| M4 | Ø4.00 | 3.10 | |
| M5 | Ø5.00 | 4.00 | |
| M6 | Ø6.35 | 5.00 | |
| M8 | Ø8.00 | 6.35 | |
| M10 | Ø10.00 | 8.00 | |
| ER-25-T | M3 | Ø3.10 | 2.50 |
| M4 | Ø4.00 | 3.10 | |
| M5 | Ø5.00 | 4.00 | |
| M6 | Ø6.35 | 5.00 | |
| M8 | Ø8.00 | 6.35 | |
| M10 | Ø10.00 | 8.00 | |
| M12 | Ø9.00 | 7.20 | |
| ER-32-T | M6 | Ø6.35 | 5.00 |
| M8 | Ø8.00 | 6.35 | |
| M10 | Ø10.00 | 8.00 | |
| M12 | Ø9.00 | 7.20 | |
| ER-40-T | M8 | Ø8.00 | 6.35 |
| M10 | Ø10.00 | 8.00 | |
| M12 | Ø9.00 | 7.20 | |
| M16 | Ø12.50 | 10.00 | |
| M20 | Ø14.00 | 11.20 |
