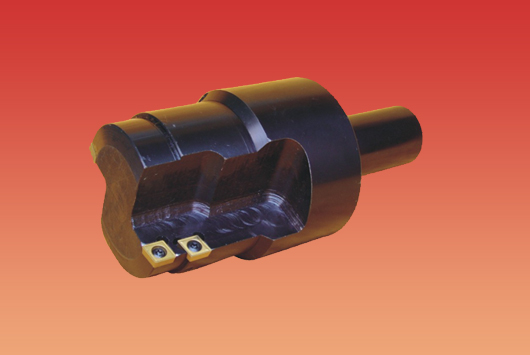

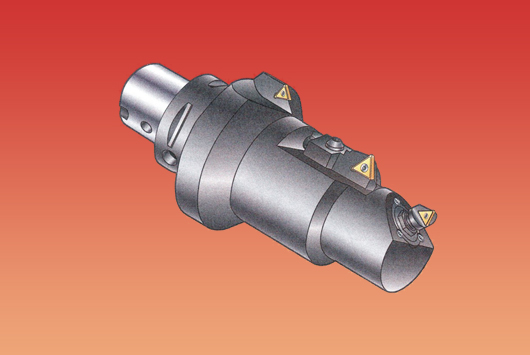

We offer custom designed combination boring bars.
Features :
- Of any shank taper or type
- For rough boring,counter boring,counter sinking&facing.
- For reverse boring
- For finish boring
- With and without coolant arrangement.

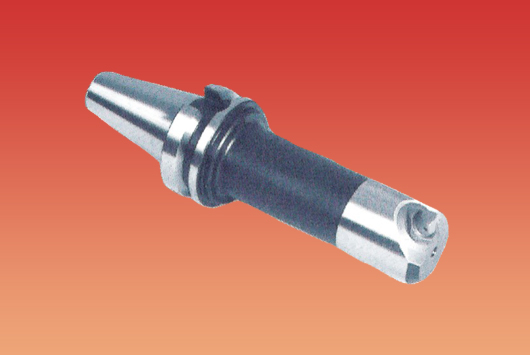

We are instrumental in offering our esteemed clients with the superior quality Fine Boring Bar.
Graduation on collar : ‘l D|V=0.002mm on dia
Attributes :
- Sturdy construction
- Long life
- Corrosion resistant
- Low maintenance
Specifications :
| Designation | Ø D | Ø D1 | L | Fig Ref. | Cartridge to be used | |
| Min. | Max. | |||||
| BT40/FBS 90 - 28 / 150 | 27 | 32 | 26 | 150 | 1 | R/L 148C - 11 - 0602 |
| BT40/FBS 90 - 38 / 150 | 36.5 | 43.5 | 34.5 | 150 | 1 | R/L 148C - 12 - 0902 |
| BT40/FBS 75-51 /165 | 50.1 | 62.1 | 46.5 | 150 | 1 | R/L 148C - 23 - 1102 |
| BT40/FBS 75-72/165 | 70.65 | 90.65 | 67 | 150 | 1 | R/L 148C - 24 - 16T3 |
| BT40/FBA 90-26/150 | 24.8 | 28.8 | 22 | 150 | 2 | R/L 148C - 31 - 0602 |
| BT40/FBSA 90-33/150 | 32.5 | 38.1 | 28.5 | 150 | 2 | R/L 148C - 32 - 0902 |
| BT40/FBA 75-44/150 | 43.5 | 53.1 | 38 | 150 | 2 | R/L 148C - 43 - 1102 |
| BT40/FBA 75-62/165 | 60.8 | 76.8 | 55 | 150 | 2 | R/L 148C - 44 - 16T3 |

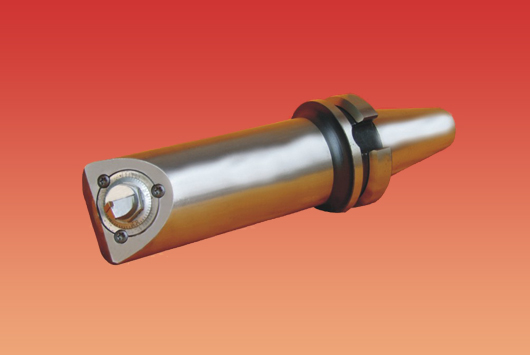

Microbore Boring Bar are manufactured from the high grade metals and are acclaimed for their sturdiness and durability.
Features :
- Sturdy construction
- Low maintenance
- Long lasting
- Resistant to corrosion
We manufacture and supply a full range of :
- Customers are requested to furnish the component drawing or sketch for us to quote.
- Special length and other types of shanks offered against customers request.
- Boring bars are balanced.
- Coolant through on request.
- We make boring bars for fine boring cartridge of SANDVIK, MITSUBISHI,RIGIBORE, KENNAMETAL,SUMITOMO etc.
